DESCRIPTION

Basic Info.

Model NO.	OTS-XB-200
Control	Computer Control
Weight	0-100Kg
Power Source	AC220V
Load Accuracy	<0.5%
Speed of Compression	10 +/- 3 mm/Min
Weightkg, Lb, N	690kg
Unit (Sitchable)	Kg, Lb, N
Delivery Time	Shipped in 15 Days After Payment
Capacity (Optional)	2t
Test Space (Lxwxh)	1000*1000*1000 mm
Load Resolution	1/10, 000
Design Criteria	Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642
Usage	Paper Testing Instrument
Transport Package	Strong Wooden Case
Specification	1495*1300*1520 mm
Trademark	OTS
Origin	China
HS Code	902410100
Production Capacity	228PCS/Month

Product Description

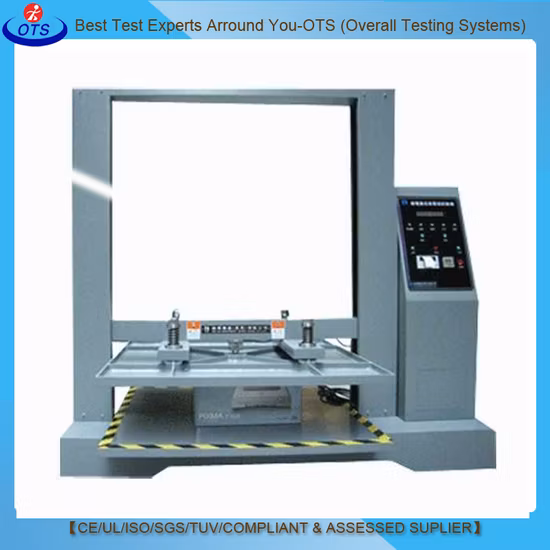

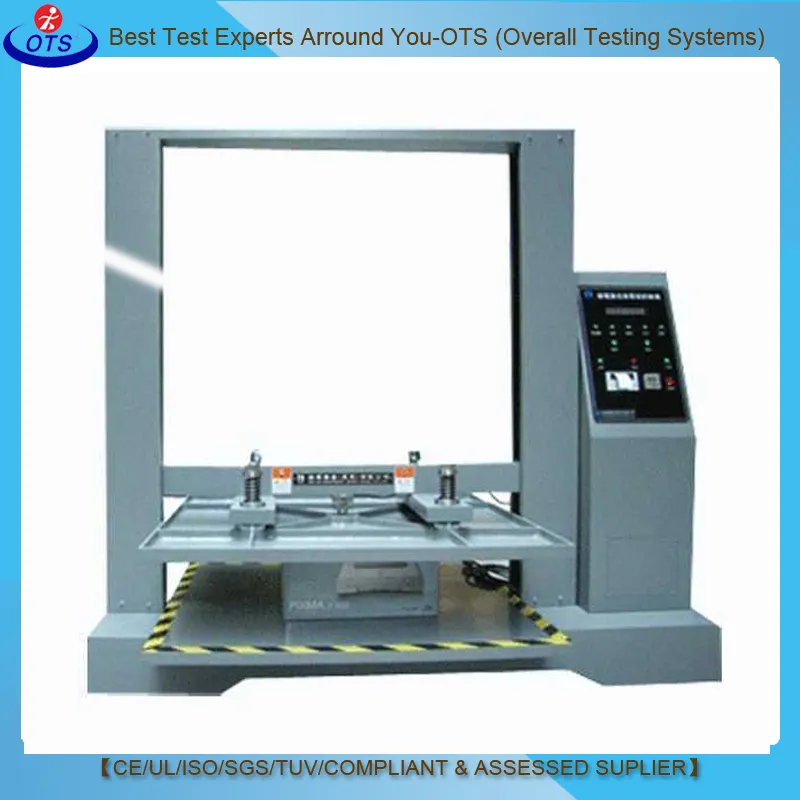

Computer Control Electronic Corrugated Carton Box Compression Testing Machine

Model: XB-OTS-200

Introductions:
Corrugated Carton Testing equipment is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.The main technical parameters Corrugated Box Compression Tester
Application:Corrugated board boxes and Cartons, Plastic Packaging, Wooden box.
Features:
1) Strength test: Strength test which belongs to a destructive test is mainly used to measure the deformation when the Sample is loaded with maximum pressure or crushing strength.2) Constant Value Test: There are two parameters which are to be set in the constant value test: Load force value and Deformation value. The user can set one or both of them according to the practical requirement; The Measurement is complete when any parameter reaches the set value.3) Stacking Test: Stacking Test is used to check up that whether the sample can endure a constant pressure in a given Time period. Set up two parameters: Compressive strength and testing time (hour). When the test Starts, the system will check the current pressure at any moment to ensure the set value; The Measure is complete when the test time is expired or the deformation value exceeds the set one Within testing time.4) The overall system is in good parallelism, stationarity and high return speed.
Design standards:
TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642
Technical Parameters:

Capacity (optional):	2T
Unit (switchable):	Kg, Lb, N
Load Resolution:	1/10,000
Load Accuracy:	≤0.5%
Indication error:	+/-1%
Return velocity:	250 mm/min (maximum)
Test Space (L×W×H):	1000×1000×1000 mm
Speed of Compression:	10 ± 3 mm/min
Report Items:	Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure:	AC frequency conversion motor ( Taiwan); Ordinary screw rod
Dimension (L×W×H):	1495×1300×1520 mm
Weight :	Approx. 690 kg
Power:	220V/ 50Hz
Safety Devices:	Overload protection, overvoltage protection & limited position protection device

AdvantageØ 24 hours onlineØ 35 years experiencesØ Sample chamber of each modelØ Best price, fast deliveryØ OEM,ODMØ Oversea officesØ Own import and export business licenseØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE

Customer Support Services

Ø InstallationØ Training (Training customer employees)Ø CalibrationØ Preventative maintenanceØ Replacement partsØ Assistance via phone or internetØ On-site diagnosis and repair/online diagnosis and repairRecommend Products

Company ProfileDongguan Xinbao Instrument Co., Ltd, with its own brand--OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, aviation, etc.

Manufacturing Technique

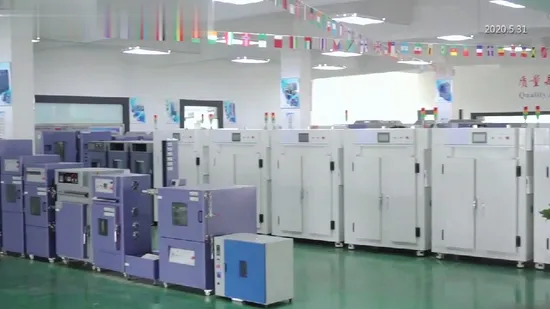

Customer PhotosNow OTS has its main production base in Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines under CNAS calibration, so customers can check the function and quality immediately. Equipped with over 30 workers in a metal plate department, OTS is capable to produce customized shells; What's more, OTS has enough stock to satisfy customers need in time. In the meanwhile, every machine must be examined for 3~days before shipment and with lifetime maintenance service.

CertificationsPacking&ShipingFAQ1.Do you offer after-sales service? How can I ask for that? And how about the warranty? Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.2.What's the delivery term? At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you. 3.Do you accept customization service? Can I have my logo on the machine? Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4.How to install and use the product? We will send you operating instructions, English video by Email. Or you can download on our officail website directly. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
